Bruno VPL-3100 Information:

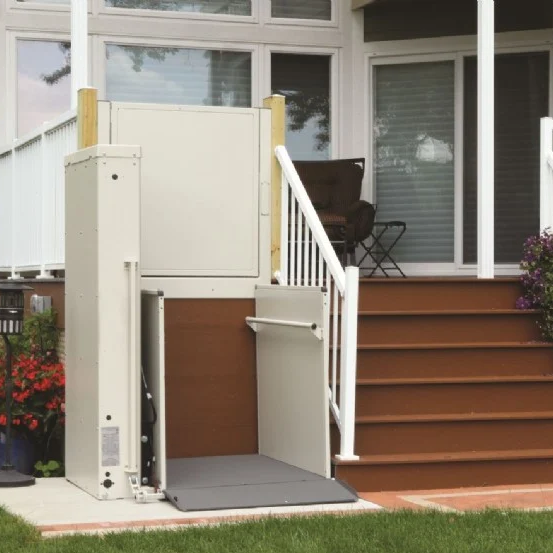

The Bruno 3100 vertical platform lift is a cost-effective home accessibility solution that can give scooter or wheelchair users an alternative to installing a long winding ramp. For the consumer who insists upon performance and reliability, the Bruno VPL-3100 offers the perfect solution for your home accessibility needs.

Features:

  • Easy to use – Self-lowering ramp folds down for smooth on/off access and automatically folds up to create a safety barrier when the platform lift is in use. Pressure-control rocker switch provides easy up/down operation.
  • Safe – Automatically shuts down when the obstruction sensor under the platform is touched. Bruno platform lifts also feature an emergency stop switch on the platform control panel.
  • Indoor or Outdoor Use – Weather-resistant controls and specialized coating protect the lift. The optional cold-weather package further combats extreme weather conditions.
  • Reliable – Affordable AC power in 4-6 ft units(DC power options are available) and continuous charging DC battery-powered motor on 10 ft models.
  • Code-Compliant – Designed in accordance with ASME A18.1 section 5 and can be used in most applications to meet ANSI A117.1 National Accessibility Guidelines.

Specifications:

  • RATED LOAD: 750 lbs maximum.
  • INPUT POWER SOURCE:
    • AC POWERED UNIT: 110-120 Volt 8 Amp 60 Hz dedicated service.
    • DC BATTERY POWERED UNIT: 110-120 Volt 3 Amp 60 Hz battery charger.
  • DRIVE:
    • AC POWERED UNIT: 1/2 hp motor, 1750 rpm, 90 VDC, continuous duty.
    • DC BATTERY POWERED UNIT: VPL-3100B: 1/2 hp motor, 1750 rpm, 24 VDC, continuous duty.
  • INTERMEDIATE REDUCTION: Dual 4L style Poly-V belts and pulleys, 3.94:1 pulley reduction.
  • FINAL DRIVE: VPL-3100: 1” dia. ACME screw w/bronze nut and bronze safety backup nut.
  • MOTOR CONTROLLER:
    • AC POWERED UNIT: 24 VAC Relay control.
    • DC BATTERY POWERED UNIT: 24 VDC Relay control.
  • SPEED:
    • AC POWERED UNIT: 9 feet per minute maximum.
    • DC BATTERY POWERED UNIT: 10 feet per minute maximum
  • Electrical Requirements:
    • AC-powered units: require a dedicated GFI 120V, 15A, 60 Hz single-phase circuit to operate. Check applicable local codes for all electrical and wiring requirements.
    • DC battery-powered units: Check applicable local codes for all electrical and wiring requirements. If it is determined that a GFI (Ground Fault Interrupter) outlet is required, use a GFI 120V, 15A, 60 Hz single-phase circuit to operate the internal battery charger (charger draws 3A max.). The National Electrical Code requires that a GFI be used in all outdoor or wet environment applications
