Bruno VPL-3200

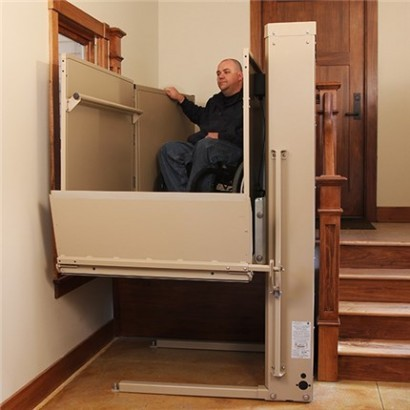

This image shows a Bruno VPL-3200. Showcasing it installed inside a home.

← Back

Thank you for your response. ✨

Bruno VPL-3200 Information:

Designed exclusively for residential use, the Bruno 3200 VPL can transport you down to the basement or up to your bedroom. With a weight capacity of 750 pounds, the 3200 platform lift can easily handle a power chair, occupant, and caregiver.

Features:

  • Easy to use – Self-lowering ramp folds down for smooth on/off access and automatically folds up to create a safety barrier when the platform lift is in use. Pressure-control rocker switch provides easy up/down operation.
  • Safe – Automatically shuts down when the obstruction sensor under the platform is touched. Bruno platform lifts also feature an emergency stop switch on the platform control panel.
  • Indoor or Outdoor Use – Weather-resistant controls and specialized coating protect the lift. The optional cold-weather package further combats extreme weather conditions.
  • Reliable – Affordable AC power in 4-6 ft units(DC power options are available) and continuous charging DC battery-powered motor on 10 ft models.
  • Code-Compliant – Designed in accordance with ASME A18.1 section 5 and can be used in most applications to meet ANSI A117.1 National Accessibility Guidelines.

Specifications:

  • RATED LOAD: 750 lb (340 kg) maximum
  • NUMBER OF PASSENGERS: 1 passenger with a mobility device
  • APPLICATIONS: Residential, Indoors, Outdoors
  • DRIVE:
    • DC battery-powered unit:
      • primary drive: 1 hp motor, 1750 rpm, 24VDC permanent magnet, 20 full-load amps, continuous duty
      • 5A, 24VDC output internal battery charger, 120VAC, 60 Hz, 3A maximum input power required
  • INTERMEDIATE REDUCTION: dual 4L style poly-V belts and pulleys, 3.94:1 pulley reduction
  • FINAL DRIVE: 1 1/4” (32 mm) diameter Acme screw with bronze nut and bronze safety backup nut
  • MOTOR CONTROLLER:
    • DC battery-powered unit: 24VDC relay control with 60A circuit breaker and disconnect
  • BRAKING:
    • DC battery-powered unit: precision landing control
  • STANDARD CONTROL: up and down rocker switch or paddle controls, continuous pressure, key switch control
  • EMERGENCY STOP SWITCH: (standard) red, sealed, 1.55” (39 mm) diameter mushroom head, push to stop, pull to reset;
  • SPEED: DC battery-powered unit: 10 ft/min (0.05 m/s) maximum
  • LIFTING HEIGHT: 123” (3124 mm) maximum floor-to-floor height
  • NUMBER OF LANDINGS: 2-Stop
  • MAIN FRAME CONSTRUCTION: welded steel tubular guide construction with formed sheet steel guarding
  • CARRIAGE CONSTRUCTION: welded carriage with 2.25” (57 mm) diameter front and back sealed dual-ball-bearing wheels and adjustable low-friction plastic side stabilizer guide pads.
  • PLATFORM CONSTRUCTION: totally enclosed side walls consisting of 1” (25 mm) tubular framing and sheet metal siding.
  • UNDER CARRIAGE SAFETY: totally enclosed bottom formed steel safety pans for unenclosed applications only.
  • AUTOMATIC LOWER RAMP: 16” (406 mm) long self-lowering ramp.
  • EMERGENCY LOWERING: external lockable keyed switch for lowering the platform by means of a separate battery located inside the electrical enclosure.
  • FINISH: exterior grade powder coat paint (standard color is champagne with anti-skid graphite gray platform floor and ramp) E-coated legs, platform, and landing gate parts
  • LIMIT SWITCHES: adjustable upper and lower limit switches; upper final limit switch
  • MANUAL LOWER DEVICE: optional; manual hand crank to lower device available; access to the adaptive shaft via a safety interlocked top cap.
  • REMOTE CONTROL: optional; station includes a separate landing call/send rocker switch or paddle controls and a keyed on/off switch
  • TOP LANDING GATE: optional; includes Bruno electrical mechanical interlock (EMI) or electric strike interlock (ESI), which releases the door, only when the platform is at the upper landing; electronic sensors stop platform from operating unless door is closed; also includes call/send rocker switch or paddle controls and keyed on/off switch mounted into gate frame; steel insert panels
  • PLATFORM GATE: optional; includes Bruno mechanical interlock, which releases the door only when the platform is at the lower landing. Electronic sensors stop the platform from operating unless the door is closed

If you aren’t sure what you need, feel free to give us a call or visit our store for more information. Phone: (559)352-6314 Address:6629 N Blackstone, Fresno, CA 93710, US
