Modular Ramps Information:
The PATHWAY 3G Modular Access System consists of ramps, stairs, and platforms, all of which may be combined and configured in a variety of ways to provide a safe pathway to and from your home. Call or visit our store today to schedule an evaluation.
| Feature | PATHWAY 3G Ramp | PATHWAY 3G Platform | PATHWAY 3G Stair |
|---|---|---|---|
| Made Of | Aluminum | Aluminum | Aluminum |
| Slip-Resistant Surface | ✓ | ✓ | N/A |
| Weight Capacity | 1000 lbs. | 1000 lbs. | 850 lbs. |
| Standard Widths | 36″ and 48″ (Solid Surface) | 36″ | 36″ |
| Standard Lengths | 2′, 3′, 4′, 5′, 6′, 7′, and 8′ | 4′, 5′, and 6′ | N/A |
| Handrail Height | 34.5″ | 34.5″ | N/A |
| For Residential Use | ✓ | ✓ | ✓ |
| Warranty | Lifetime | Lifetime | Lifetime |
Available Options

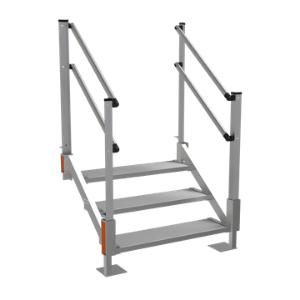

An aluminum adjustable stair system is available for use up to 56 inches in height. The portable metal stairs are easy to attach to platforms or an existing platform, deck, or stoop.

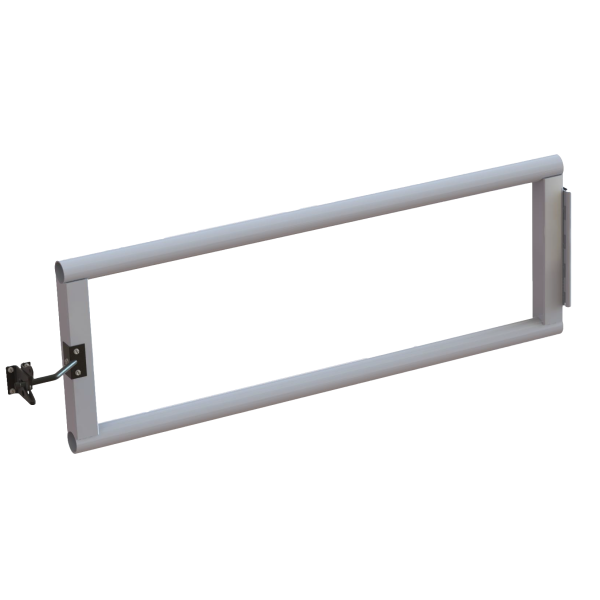

A manual gate provides additional safety at the top of the stairs or at the beginning of a ramp run.

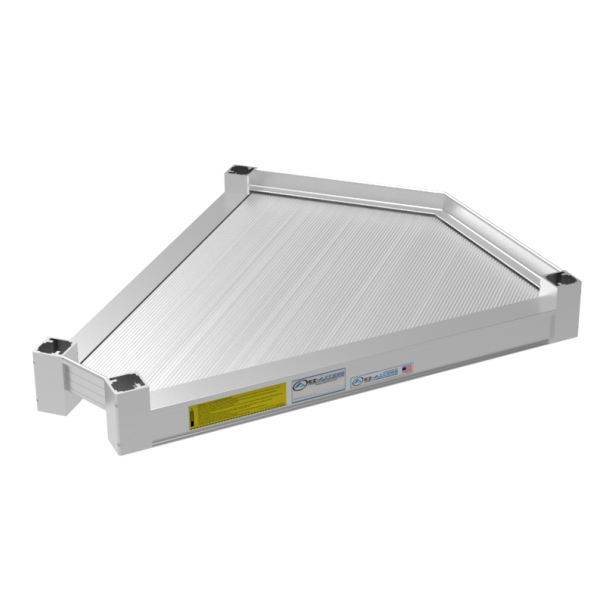

The 45-degree platform allows for multi-dimensional angle changes and uses less space than traditional platforms. Available in all surface options and select handrail styles.

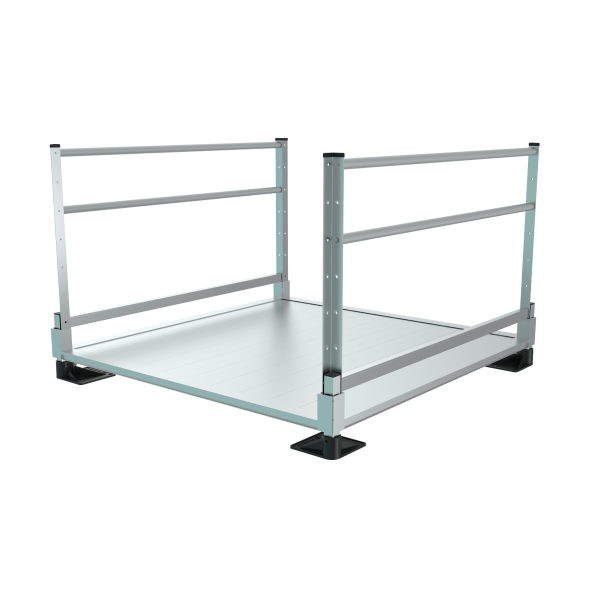

Serves the same purpose as a standard platform, except this low-profile version is designed for use with thresholds between 1-1/2” and 3-1/2” high. Available in multiple sizes and all handrail styles (shown with two-line rails).

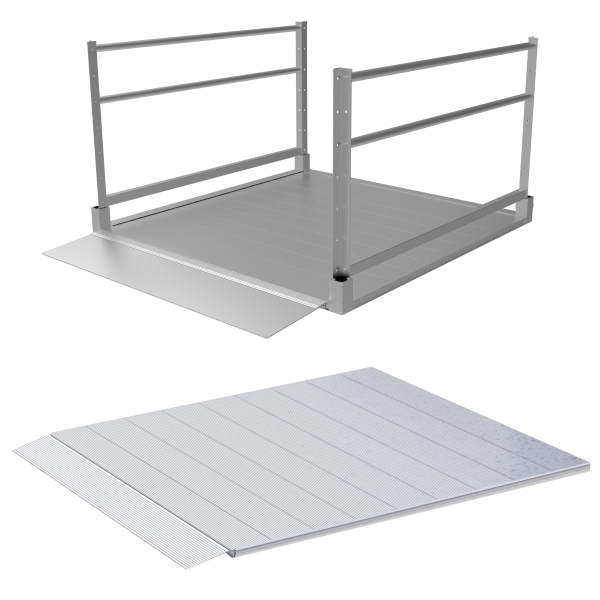

Provides a safe and solid landing at the bottom of a ramp run. Ideal for use when a ramp ends in the grass or other soft surface. The landing pad eliminates the need for pouring a concrete pad and is available with or without handrails. Ground transition options are also available.
INFINITE CONFIGURATIONS
The PATHWAY 3G allows for infinite modular residential wheelchair ramp and platform configurations, creating safe and seamless access for both standard and unique entryways. Ramp lengths from 2′-8′ and platform sizes up to 8’x5′ enable you to overcome any access challenge at your home.
These modular wheelchair ramps, platforms, and stairs can be enhanced through optional features, such as angled platforms, landing pads, and safety gates.
- Including angled platforms in the design allows for easy maneuvering of tight corners and turns without requiring a full platform.
- With the landing pad, soft surfaces, including grass, are easier to navigate as you approach the ramp.
- A manual gate provides additional safety at the top of the stairs or at the beginning of a ramp run.
Combined with modular entry ramps, entering and exiting your home will be barrier-free.
SUPERIOR SURFACE OPTIONS
No need to add slip-resistant material to the PATHWAY 3G since it is built into the design. Choose from two surface options: solid and expanded metal to meet your needs.
- The solid option features an extruded tread surface with raised ribs to provide exceptional slip resistance.
- Expanded metal utilizes diamond-shaped openings to allow multi-directional traction and reduced surface accumulation.
PREMIUM HANDRAIL STYLES
Three handrail options are available for the PATHWAY 3G Modular Access System. These component-based rail options are easy to assemble and customize. All styles are made of aluminum and feature a durable finish with a continuous top rail.
- The most popular handrail configuration, the two-line rail, provides an additional gripping surface by adding a second rail below the continuous top rail. The option of a lower rail is great for those in wheelchairs who prefer pulling up a ramp instead of self-propelling.
- Vertical pickets offer an added level of safety, especially for children and small pets. The pre-assembled aluminum inserts meet the 4-inch sphere rule for spacing, preventing accidental head trapping.
- Horizontal pickets offer an aesthetic option while maintaining safety. These horizontal inserts run parallel to the topmost rail, combining safety with a pleasant appearance.
DURABLE AND SAFE
Modular wheelchair ramps for homes need to withstand frequent use as well as climate and weather events. The PATHWAY 3G is made of high-strength aluminum, which will not deteriorate in the outdoor elements and features slip-resistant surfaces that maintain traction in any weather. Even the weight of a motorized wheelchair won’t be a problem. The sides are finished and flush with no hazardous nuts or bolts protruding into the usable ramp area, to avoid catching on anything as you pass by.
ALUMINUM ADVANTAGE
The PATHWAY 3G is virtually maintenance-free; it will not rust or rot and is constructed from an environmentally friendly material. Aluminum’s sturdiness and aversion to decay provide peace of mind that the ramp is secure. While wood becomes easily discolored over time, aluminum maintains a consistent appearance. Beyond an occasional rinse to remove mud or debris, the aluminum requires no sealing or other significant maintenance. Aluminum is both lightweight and durable, providing low-effort installation and a long lifespan.
HASSLE-FREE DESIGN
The ramp system will not impact your home’s property value because it does not alter or add to the structure of the residence – no poured footers, no construction – just simple assembly. While considered a permanent ramp, the PATHWAY 3G can be easily disassembled if the need arises.
QUICK AND EFFICIENT INSTALLATION
The PATHWAY 3G installs quickly, which means minimal disruption for you and your family. Typically, a 24-foot system can be installed, including handrails, in less than an hour. Since the modular access systems are prefabricated and do not require concrete footers, the setup requirements are minimal. Call or visit our store for more information.
To Inquire About Pricing or Get A Quote Contact Us Below
If you aren’t sure what you need, feel free to give us a call or visit our store for more information. Phone: (559)352-6314 Address:6629 N Blackstone, Fresno, CA 93710, US
